Draw Latches (Adjustable Type)
CS(T)-52series (Assistance Latch+Padlock Hole)
Features
Adjustable Toggle Latch, Latch Clamp｜High loading 95 kgf.
With adjustable latch rod, user can adjust the suitable compression force.
The hook is equipped with a nylon ring to increase resistance during forward and reverse rotation, preventing accidental movement of the hook.
★ Patented Design: The lift handle features an assistance latches.
Benefit 1: Prevents accidental opening caused by strong vibration.
Benefit 2: Anti-misoperation protection — the latch must be slid before opening, reducing unintended release.
★Operating Instructions: Slide the locking button downward and lift the handle to open. To close, simply press inward; the locking button will automatically engage.
Standard lock-hole available padlocks to prevent from the accident, applicable to molds.
Each Draw Latch was treated with a shaving edge to eliminate the sharpness, so there is no need to have protective cover in the produce process.
➤Material: SUS304(Stainless steel)-vibration ground, , SPHC(cold-rolled steel) -zinc plated or black coated.
With adjustable latch rod, user can adjust the suitable compression force.
The hook is equipped with a nylon ring to increase resistance during forward and reverse rotation, preventing accidental movement of the hook.
★ Patented Design: The lift handle features an assistance latches.
Benefit 1: Prevents accidental opening caused by strong vibration.
Benefit 2: Anti-misoperation protection — the latch must be slid before opening, reducing unintended release.
★Operating Instructions: Slide the locking button downward and lift the handle to open. To close, simply press inward; the locking button will automatically engage.
Standard lock-hole available padlocks to prevent from the accident, applicable to molds.
Each Draw Latch was treated with a shaving edge to eliminate the sharpness, so there is no need to have protective cover in the produce process.
➤Material: SUS304(Stainless steel)-vibration ground, , SPHC(cold-rolled steel) -zinc plated or black coated.
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
.png)
CS-5230 Tensile 795.17kgf Curve Chart.
4 Features
-52/CS-52%E5%85%A7%E5%AE%B9en.jpg)

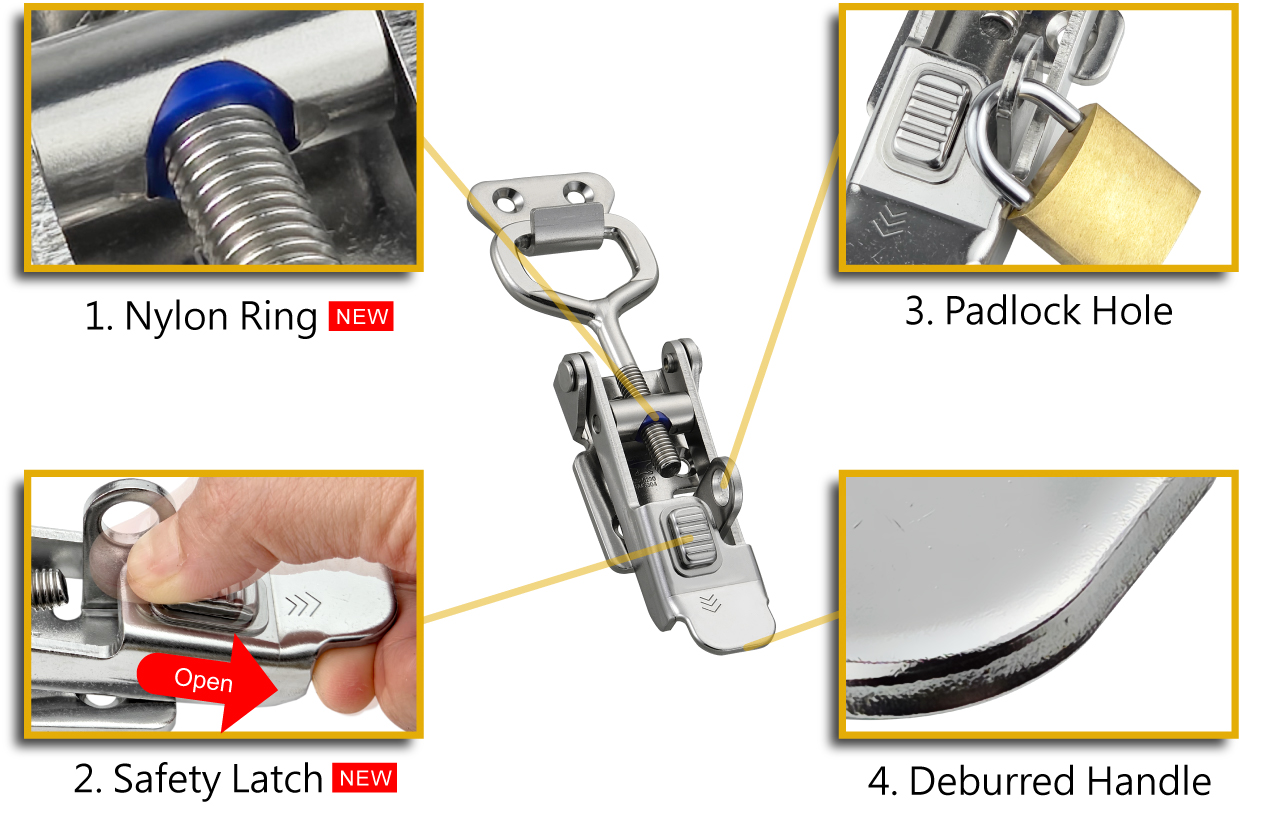

| The CS(T)-52 Series inherits key features from the CS(T)-02 Series, including (3) a padlock hole and (4) a deburred handle, and further enhances safety with (1) a nylon ring and (2) a safety latch. | ||
|---|---|---|
| Item | Description | |
| 1 | Nylon Ring NEW | Prevents unintended rotation that may affect preset tension. |
| 2 | Safety Latch NEW | Secondary locking mechanism provides anti-vibration protection even without padlock installation. |
| 3 | Padlock Hole | Standard lock hole allows user-installed padlocks to enhance security and safety control. |
| 4 | Deburred Handle | Lift handle is smoothly deburred for safer operation, eliminating the need for traditional plastic protective covers. |
Unit: mm [※1 kgf ≒ 10 N]Alternative or choosable accessories
