Pocket Pulls

ES-06 series

Features

Pocket Pull｜Embedded plane handle, load capacity 50 kgf, easy to assemble.
Stainless steel (SUS304), black coating or vibration ground with brushed finish, outward appearance lofty artistic, in accordance with RoHS.
A good R construction on hold portion of the pocket pull, feel free and easy when hold it. Applicable to clean room, machine and industry enclosure.
➤Material: SUS304(stainless steel)-Brushed finish or black

2D 3D Catalog Inquiry ☑️

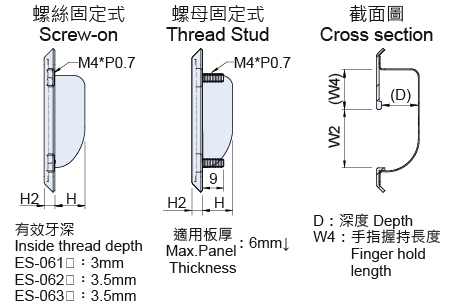

　Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS

Item No.	Type	Material	Handle Color & Finish	Dimensions										Load Capacity (kgf)	Opening size	Weight (g)
Item No.	Type	Material	Handle Color & Finish	L1	L2	L3	W1	W2	W3	H	Max. Panel Thk. (T)	P1	P2	Load Capacity (kgf)	Opening size	Weight (g)
ES-0610	⊕ Screw-on	SUS304	Brushed finish	94	62	63	60	25	45	12	-	76	32	50	63x45	77.2
ES-0620	⊕ Screw-on	SUS304	Brushed finish	110	70	73	65	26	42	15.2	-	88	38	50	73x42	95
ES-0620B	⊕ Screw-on	SUS304	Black	110	70	73	65	26	42	15.2	-	88	38	50	73x42	98
ES-0630	⊕ Screw-on	SUS304	Brushed finish	139	97	99	89	36	64	21	-	110	65	50	99x64	186
ES-0611	Thread Stud	SUS304	Brushed finish	94	62	63	60	25	45	12	6↓	76	32	50	63x45	79.4
ES-0621	Thread Stud	SUS304	Brushed finish	110	70	73	65	26	42	15.2	6↓	88	38	50	73x42	97
ES-0631	Thread Stud	SUS304	Brushed finish	139	97	99	89	36	64	21	6↓	110	65	50	99x64	195
