Heavy-Duty Anti-Vibration Leveling Feet
DK-09 series (Silver / Load Capacity 1300 kgf)
Features
Heavy Duty Leveling Feet｜Before the installation, the mechanical foot please do not tapped hole.
★Automatic adjust the horizontal angle. Correctly guide the machine feet to completely fit the ground to let the mechanical stable running. When machine loading 1300kgf on the heavy-duty leveling feet. can be adjusted with 60Nm using an open end wrench. (Please refer to the photo below)
．To prevent from the vibration and improve the work environment when the machine is on. To decrease the vibration between floors when the machine is running. To ensure the precision of machinery in order to prevent from the slipping out, shockproof, non-slip, wear-resistant, oil-resistant.
．Application: Gantry, injection machine and industrial processing equipment.
★Leveling Feet meets UL94 V0 fire resistance rating.
➤Material-Base: FC-250 Powder coating (Silver)
➤Material-Bolt: S45C with heat treatment and coating with Manganese phosphate
➤Material-Cushion: Chloroprene Rubber (Black)
➤Material-Socket Set Nut: FCD45 Powder coating (Black)
★Automatic adjust the horizontal angle. Correctly guide the machine feet to completely fit the ground to let the mechanical stable running. When machine loading 1300kgf on the heavy-duty leveling feet. can be adjusted with 60Nm using an open end wrench. (Please refer to the photo below)
．To prevent from the vibration and improve the work environment when the machine is on. To decrease the vibration between floors when the machine is running. To ensure the precision of machinery in order to prevent from the slipping out, shockproof, non-slip, wear-resistant, oil-resistant.
．Application: Gantry, injection machine and industrial processing equipment.
★Leveling Feet meets UL94 V0 fire resistance rating.
➤Material-Base: FC-250 Powder coating (Silver)
➤Material-Bolt: S45C with heat treatment and coating with Manganese phosphate
➤Material-Cushion: Chloroprene Rubber (Black)
➤Material-Socket Set Nut: FCD45 Powder coating (Black)

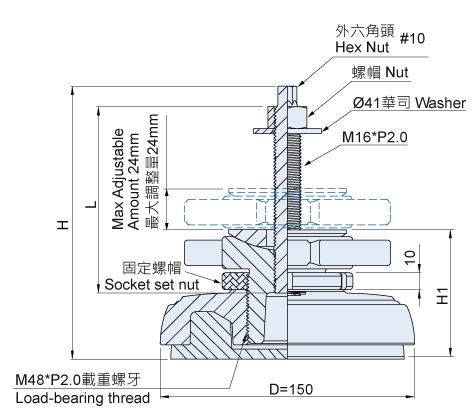

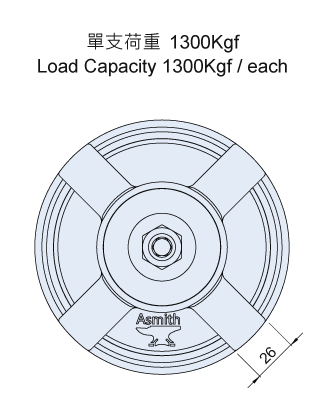

Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
※Place the level washer on the glide then lower down machine slowly. (Before the installation, the mechanical foot please do not tapped hole.)
※Insert the bolt through the machine into the glide then place the nut and washer from the top.
※To adjust machine to its height with the handle by the wrench(26mm).
※To tie the nut and washer when the adjustment is done accurately.
※After locking the socket set nut that is under handle with 3" hook wrench, assembly is finished.
※Insert the bolt through the machine into the glide then place the nut and washer from the top.
※To adjust machine to its height with the handle by the wrench(26mm).
※To tie the nut and washer when the adjustment is done accurately.
※After locking the socket set nut that is under handle with 3" hook wrench, assembly is finished.
