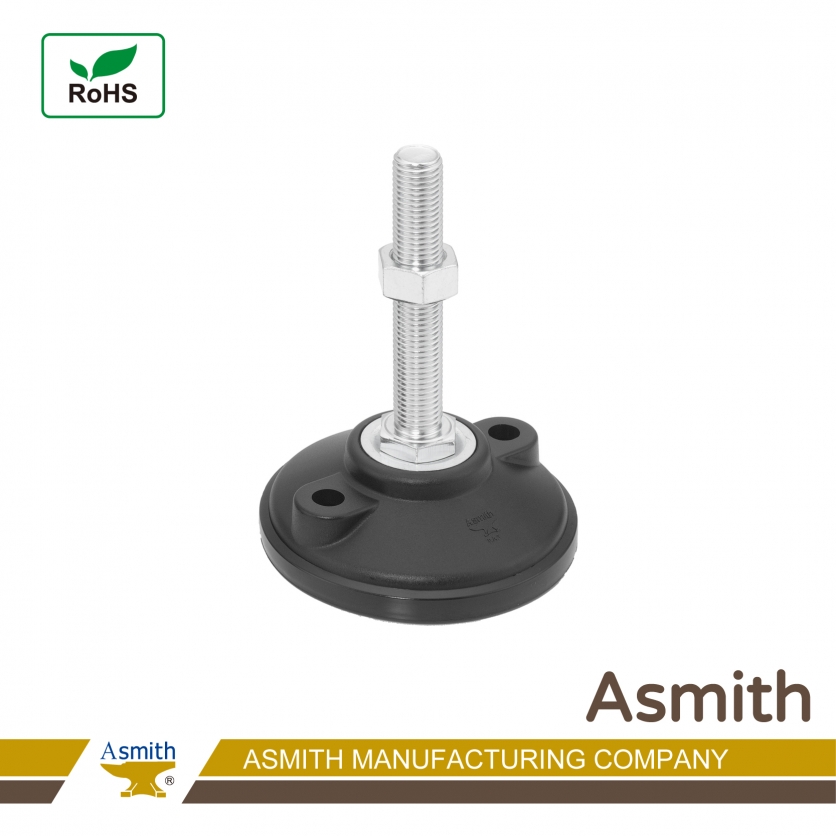

Nylon Base Anti-Vibration Leveling Feet
DK(S)-02 series - (M20)
Features
Load capacity 800 kgf. Can be locked on the ground. Resistance to shock, rust (DS Series), slip, alkali, abrasion, greasiness.

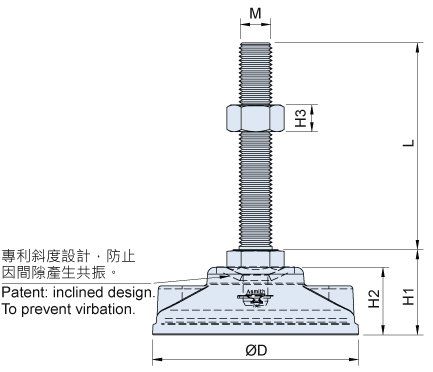

inclined design, the rake of bolt's bottom and base's hole design is to prevent vibration while they are assembled.
The screw is smooth, easily & quickly install.
★ Use the original raw material compliant with UL94 HB standards.

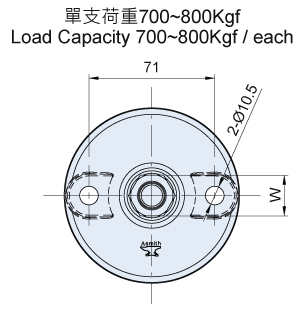

✩ The recommended load capacity is base on the graph, the actual damage load capacity is more than the recommended load capacity. For avoid the uneven distribution of machine weight, please follow the recommend load capacity.
✩ It is recommended to use in an environment with relative humidity around 40-60% to ensure its performance and longevity. Do not use in dry room environments.
➤Material-Base: Supertough Nylon(STPA66), Black.
➤Material-Cushion: Rubber (NBR), Greasiness, Alkali / Heat 130℃.
➤Material-Bolt: DK-02 Steel (SCM), Zinc plated. DS-02 Stainless steel (SUS304)-Electro Polishing.
inclined design, the rake of bolt's bottom and base's hole design is to prevent vibration while they are assembled.
The screw is smooth, easily & quickly install.
★ Use the original raw material compliant with UL94 HB standards.
✩ The recommended load capacity is base on the graph, the actual damage load capacity is more than the recommended load capacity. For avoid the uneven distribution of machine weight, please follow the recommend load capacity.
✩ It is recommended to use in an environment with relative humidity around 40-60% to ensure its performance and longevity. Do not use in dry room environments.
➤Material-Base: Supertough Nylon(STPA66), Black.
➤Material-Cushion: Rubber (NBR), Greasiness, Alkali / Heat 130℃.
➤Material-Bolt: DK-02 Steel (SCM), Zinc plated. DS-02 Stainless steel (SUS304)-Electro Polishing.
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
