Torque Calibration System 0.05~1200Nm

WC series (0.05 Nm~1200 Nm)

Features

★ Torque calibration system : ① + ② + ③
★ This series is made-to-order. The lead time is approximately 3 to 8 weeks, depending on material availability.

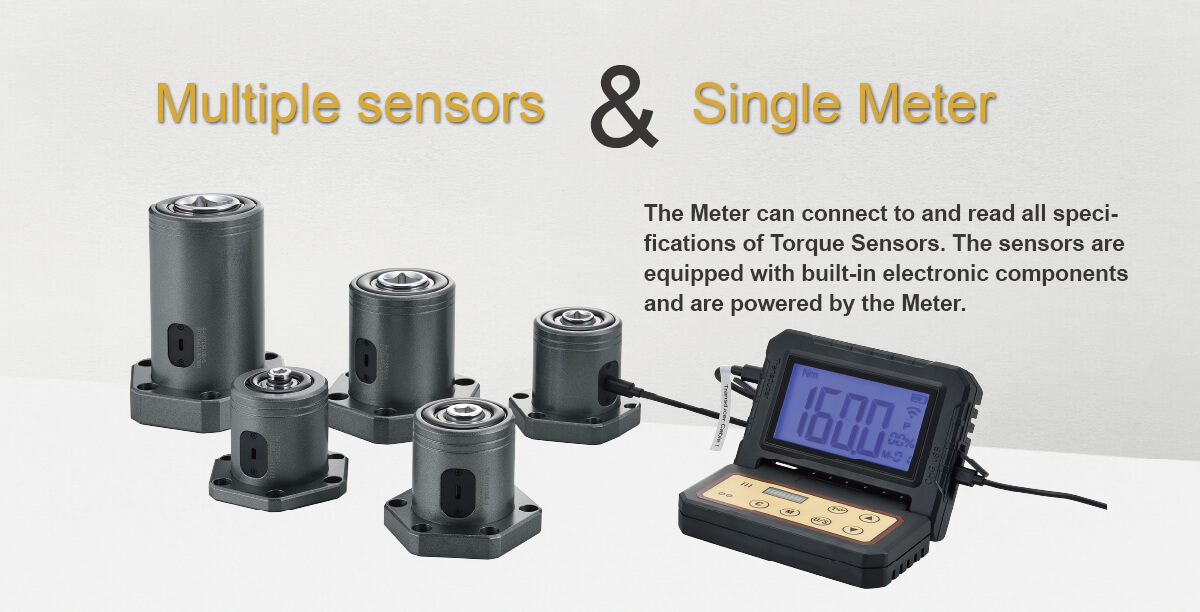

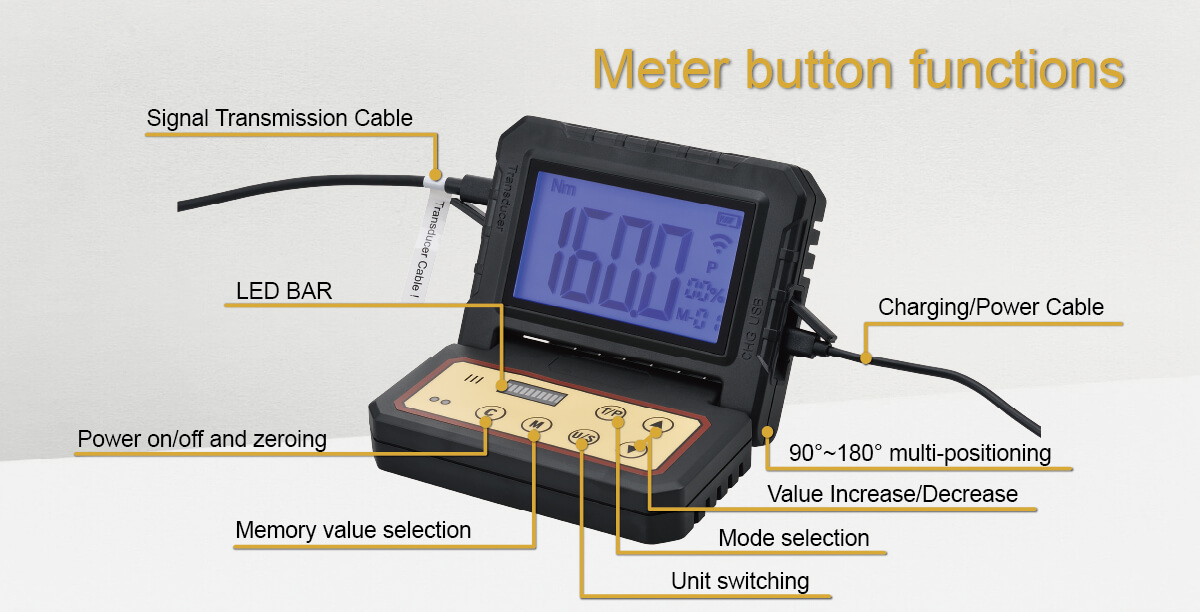

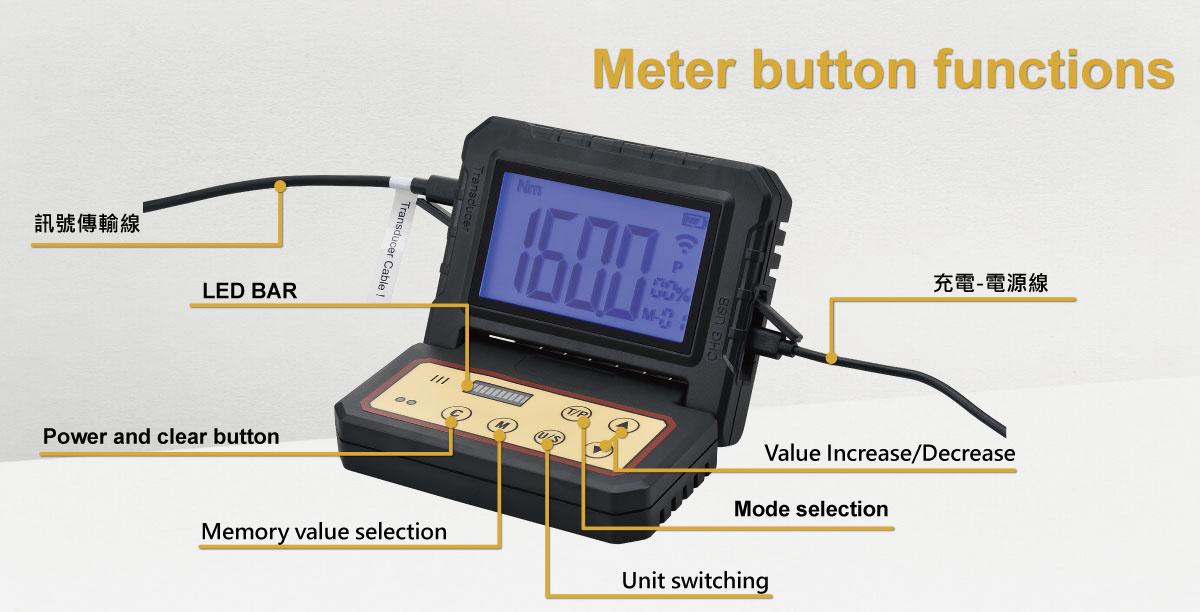

1. ①Torque Meter｜Rechargeable. A single torque meter can connect to various sensor models.

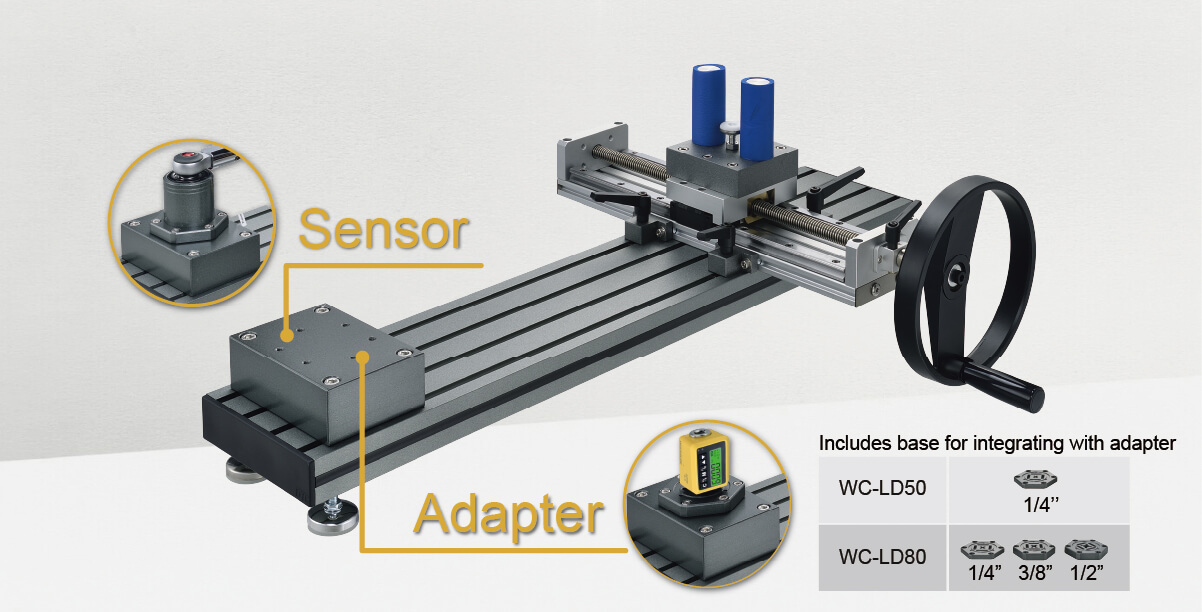

2. ②Desktop Torque Test Stand｜Available in three sizes to choose the appropriate stand based on the wrench's required length.
3. ③Torque Sensor｜Detection range from 0.05 Nm to 1200 Nm; select the corresponding sensor according to specific torque requirements.
4. Calibrate the torque wrench using a sensor to verify its accuracy.
5. Warning function : Beep, LED indicator. ( When reach the torque setting value 80%)
6. The backlight changes from blue to red, and the buzzer continues to sounds. ( When reach the torque setting value 101%)
7. Four torque units are available : N-m, ft-lb, in-lb, kgf-cm.
8. Can store 30 memory setting values.
9. Two modes : Track /Peak.
※※ Not for air wrench and electric wrench ※※
➤①Meter Content : User guide(Bilingual) x1, Type-C to C Signal Transmission Cable x1, USB to Type-C Charging Cable x1
➤②Test Stand Content : Open-end wrench x1 (for fixing the base), L-shaped hex wrench x1 (for fixing the sensor), Bubble level x1
➤③Sensor Content : Anti-shock tool box x1, Certificate of calibration report (Using ISO specification) x1

Catalog Resource Inquiry ☑️

　Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS

Item No.	Accessories	Setting Range	Calibration Range	Drive (inches)	Preset Accuracy		Resolution	L1	Size LxWxH (cm)	Weight (kg)
Item No.	Accessories	Setting Range	Calibration Range	Drive (inches)	CW	CCW	Resolution	L1	Size LxWxH (cm)	Weight (kg)
WC-S1-C	① Torque Meter	-	-	-	-	-	-		17.2x13.5x2	0.39
WC-LD50	② Desktop torque test stand	-	-	-	-	-	-	14.5~34	51.0x31.2x25.5	10.19
WC-LD80	② Desktop torque test stand	-	-	-	-	-	-	14.5~65.5	81.0x60.5x25.6	13.78
WC-LD150	② Desktop torque test stand	-	-	-	-	-	-	29.5~116	152x81.5x38	-
WC-SS5-1	③ Sensor	5~500 cNm (0.05~5 Nm)	25~500 cNm	1/4"	±0.5%	±1%	0.1 cNm		9.3x9.3x7.9	0.73
WC-SS10-1	③ Sensor	0.1~10 Nm	0.5~10 Nm	1/4"	±0.5%	±1%	0.01 Nm		9.3x9.3x7.9	0.73
WC-SS50-1	③ Sensor	0.5~50 Nm	2.5~50 Nm	1/4"	±0.5%	±1%	0.01 Nm		9.3x9.3x7.9	0.73
WC-SS80-2	③ Sensor	0.8~80 Nm	4~80 Nm	3/8"	±0.5%	±1%	0.01 Nm		9.4x9.4x8	1.04
WC-SS160-2	③ Sensor	1.6~160 Nm	8~160 Nm	3/8"	±0.5%	±1%	0.1 Nm		9.4x9.4x8	1.04
WC-SS250-3	③ Sensor	2.5~250 Nm	12.5~250 Nm	1/2"	±0.5%	±1%	0.1 Nm		9.4x9.4x8	1.03
WC-SS450-3	③ Sensor	4.5~450 Nm	22.5~450 Nm	1/2"	±0.5%	±1%	0.1 Nm		9.4x9.4x8	1.03
WC-SS650-4	③ Sensor	6.5~650 Nm	32.5~650 Nm	3/4"	±0.5%	±1%	0.1 Nm		11.0x11.0x10.4	1.96
WC-SS850-4	③ Sensor	8.5~850 Nm	42.5~850 Nm	3/4"	±0.5%	±1%	0.1 Nm		11.0x11.0x10.4	1.96
WC-SS1200-5	③ Sensor	12~1200 Nm	60~1200 Nm	1"	±0.5%	±1%	1 Nm		11.7x11.7x15.5	3.20

Note: L1 represents the distance from the center of the sensor to the calibration point of the wrench.

※1 Nm=10.2 kgf-cm=0.738 lbf-ft=8.851 lbf-in

Why is calibration necessary?

1. Inspection: By inspecting the torque wrench before daily use, you can ensure accurate torque locking every day and prevent any abnormalities in the torque wrench.

2. Calibration: Over time, the torque value of a torque wrench may develop slight deviations. Using the factory-provided torque calibration method along with calibration equipment allows for precise torque adjustments and calibration.

Includes base for integrating with adapter
