Push to Close Latches
BS(T)-12(1) series

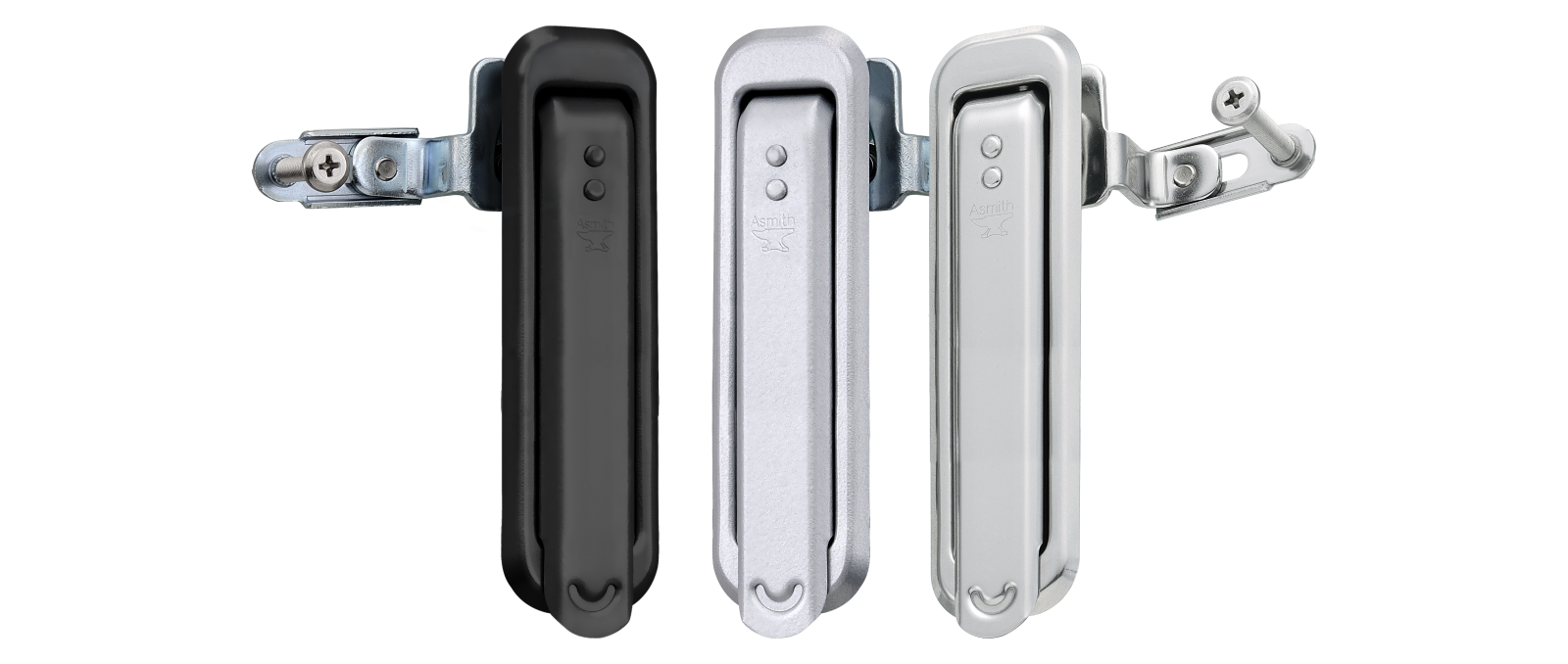

Features

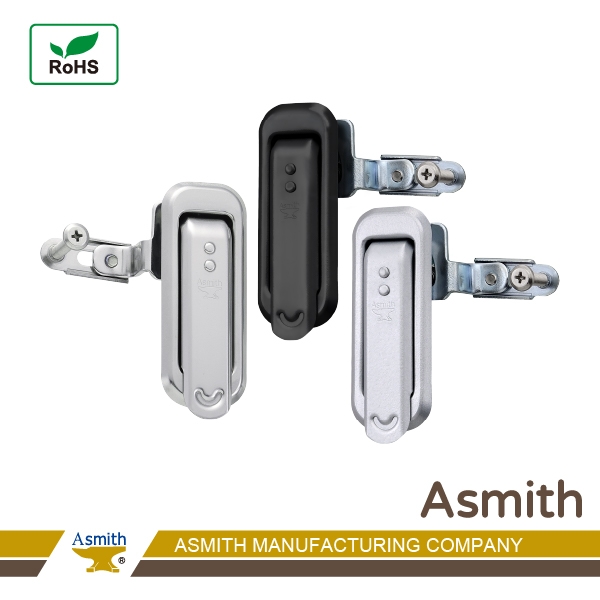

Plane Lock,Push to Open Latch｜Simply pull or press the door handle lightly to quickly open or close the door lock.
The pawl allows for adjustable and is suitable for different box thicknesses.
BS-121 made of stainless steel to reduce rust or breakage issues.
The includedtruss head screw are suitable for panels up to 5mm thick; use longer screws to accommodate more panel thicknesses.
➤ Material - Body: SUS304 stainless steel-Vibration ground, Steel(SPHC)-silver-white, black.
➤Material-shaft, pawl and mounting bracket: SUS304(stainless steel)-vibration ground, Steel(SPHC)-zinc plated.
The pawl allows for adjustable and is suitable for different box thicknesses.
BS-121 made of stainless steel to reduce rust or breakage issues.
The includedtruss head screw are suitable for panels up to 5mm thick; use longer screws to accommodate more panel thicknesses.
➤ Material - Body: SUS304 stainless steel-Vibration ground, Steel(SPHC)-silver-white, black.
➤Material-shaft, pawl and mounting bracket: SUS304(stainless steel)-vibration ground, Steel(SPHC)-zinc plated.
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Door Latch Installation
1. Pull the clasp apart and insert it into the holes on both sides of the door latch.
2. Press truss head screw onto the slot of the clasp and use a PH screwdriver to screw it into the screw hole. (Adjust the screw depth according to the thickness of door panel)
Recommended door panel thickness≦5mm, max thickness 8mm.
Pawl Installation

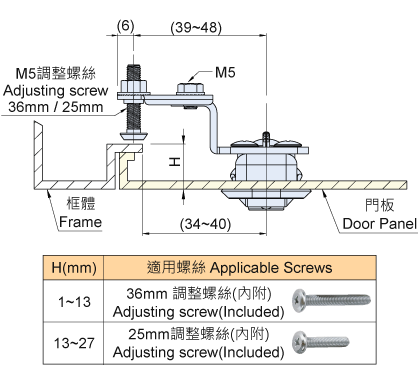

1. Choose appropriate adjutable screw according to installation distance. (accessory: one long screw and one short screw)
2. Mount pawl behind door latch.
3. Tighten pawl screw with a PH screwdriver.
Pawl Adjustment
After installing door latch
1. User moves extension pawl left or right.
2. And moves adjustable screw backward or forward.
3. Firmly tighten set screw and flange nut with an 8mm hex key wrench.
