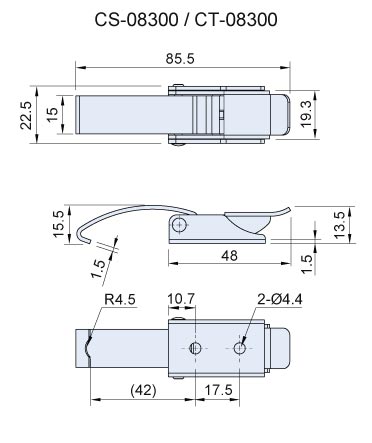

Draw Latches (Spring Loaded Type)
CS(T)-08300
Features
Spring Hook Toggle Latch, Draw Latch｜Loading included 50 kgf.
Sheet metal flexible arc hook, special hook design can easily and directly lock or hooked screws without latch keeper.
In accordance with RoHS.
➤Material-Body: CS: SUS304-vibration ground ／ CT: SPCC-zinc plated.
➤Material-Hook: CS: SUS420-vibration ground + coating ／ CT: SPCC-zinc plated.
Sheet metal flexible arc hook, special hook design can easily and directly lock or hooked screws without latch keeper.
In accordance with RoHS.
➤Material-Body: CS: SUS304-vibration ground ／ CT: SPCC-zinc plated.
➤Material-Hook: CS: SUS420-vibration ground + coating ／ CT: SPCC-zinc plated.
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
