Draw Latches (Spring Loaded Type)
CS(T)-01 series (Spring)
Features
Spring Loaded Toggle Latch, Draw Latch｜The proposed load of 22~50 kgf.
Both sides spring design with compression function.
Standard Lock-hole can using with lock. Suitable for vibration equipment.
Smooth surface, excellent brushed finish appearance, in accordance with RoHS.
The draw latch is including the horizontal keeper, if you need another type keeper then you can reference the below "Accessories".
➤Material: SUS304(Stainless steel)-vibration ground and brushed finish, SPCC(cold-rolled steel)-zinc plated
Both sides spring design with compression function.
Standard Lock-hole can using with lock. Suitable for vibration equipment.
Smooth surface, excellent brushed finish appearance, in accordance with RoHS.
The draw latch is including the horizontal keeper, if you need another type keeper then you can reference the below "Accessories".
➤Material: SUS304(Stainless steel)-vibration ground and brushed finish, SPCC(cold-rolled steel)-zinc plated

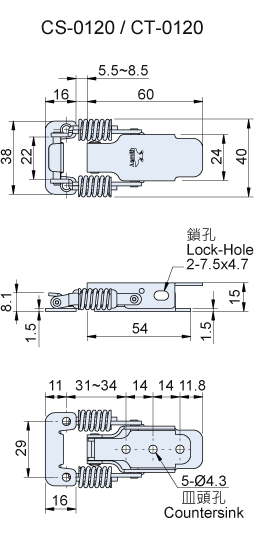

Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Youtube

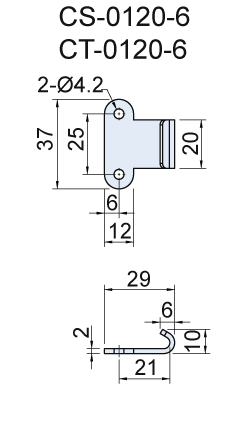

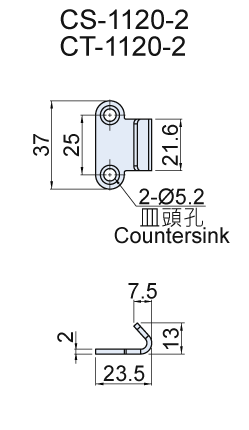

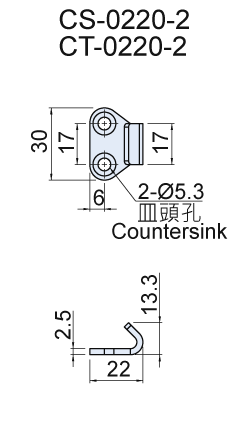

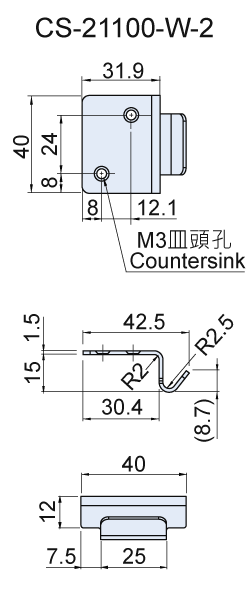

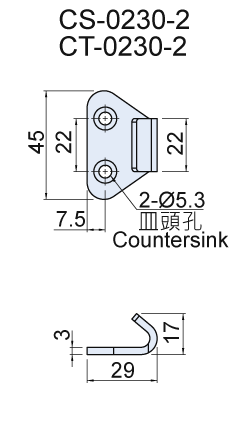

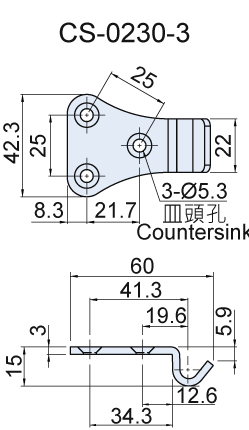

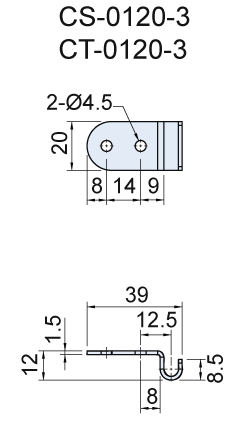

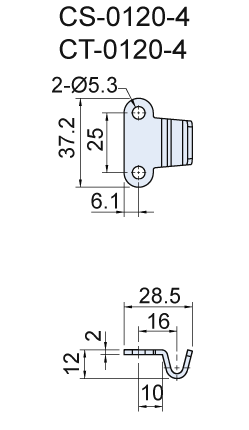

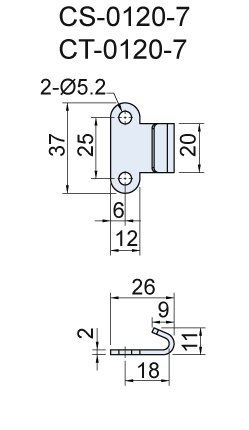

Unit: mm [※1 kgf ≒ 10 N]Alternative or choosable accessories
